Securement Straps & Kits

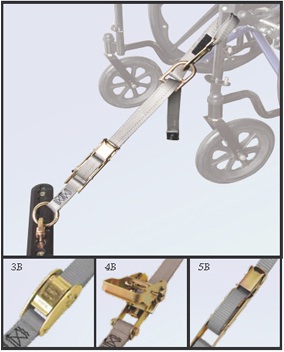

Manual style with Tie Back Ring and Snap Hook
Features special tie back ring on strap and snap hook for wheelchair attachment. These straps meet the minimum length (16” front & 19” rear) and maximum lengths (28” front & 29” rear) specified when installed.
| 4-STRAP SECUREMENT KITS | PART NUMBER |
| 2-ea. 3B cambuckle straps*, 2-ea. 4B ratchet buckle straps | SH2000L3B4B-KT |
| 2-ea. 3B cambuckle straps*, 2-ea. 5B overcenter buckle straps | SH2000L3B5B-KT |
| 4-ea 4B ratchet buckle straps | SH2000L4B4B-KT |
| 4-ea 5B overcenter buckle straps | SH2000L5B5B-KT |
| Replacement Straps: | |
| 1-ea. 3B Cambuckle strap* | SH2100L3B |
| 1-ea. 4B Ratchet buckle strap | SH2100L4B |
| 1-ea. 5B Overcenter strap | SH2100L5B |
Note: For kits or straps compatible with A-track anchorage, replace “L” with “A” in the part number. i.e SH2000L3B4B-KT becomes SH2000A3B4B. *Cambuckle straps are to be used for front securement only on forward facing wheelchair securement.
